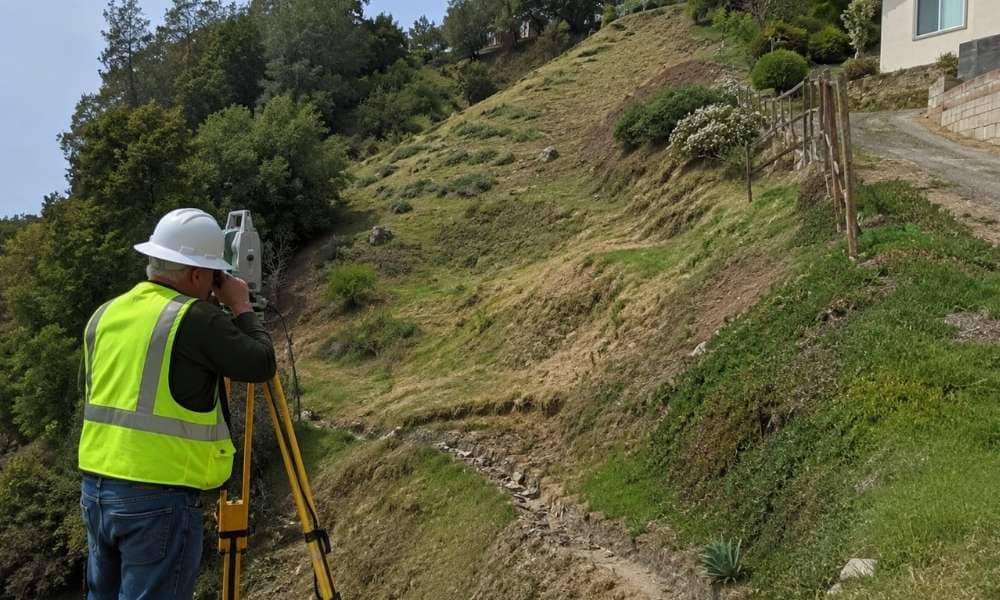

A hillside lot rarely holds one steady grade from top to bottom. Before a retaining wall gets drawn on a plan, someone needs to know how the ground actually behaves across that slope. Topographic data gives designers real elevations to work from instead of a rough guess.
Reading Existing Slope Breaks Before Choosing Wall Locations
Every hillside has points where the grade changes direction. A gentle slope can steepen without warning, flatten into a bench, or drop off sharply at an edge. These points are called slope breaks.
A topographic survey plots these breaks using contour lines and measured points across the site. Designers read the contours to see where the ground steepens, where it levels out, and where a natural bench already sits on the property.
This matters early in planning. A wall placed just above a slope break behaves differently than one set in the middle of a steady, even grade. Reading the terrain as it exists today, before any wall line gets sketched, gives the design team a real starting point.
This is about the slope as it sits right now. Grading a driveway or changing the slope on purpose is a separate topic and isn’t part of this discussion.
Mapping the Ground Above and Below a Proposed Wall
A retaining wall doesn’t exist on its own. The ground above it and the ground below it both matter to the design.
Elevations collected only along a single wall line leave designers guessing about what’s happening around it. Elevations gathered on both sides of the corridor show how high the slope rises behind the wall and how far it drops in front of it.
That height difference shapes a lot of early decisions. A wall holding back three feet of soil is a very different project than one holding back twelve feet. Without elevation data on both sides of the corridor, that number is a guess, not a fact.
Collecting a wider band of elevation data, not just a single line down the middle, gives the design team a clearer picture of what the wall needs to hold and where the grade settles on each side of it.
Spot Elevations Where Contours Hide Small Terrain Changes
Contour lines are a smoothed picture of the ground. They work well for showing the general direction of a slope, but they can miss small features that sit between contour intervals.
A shallow dip, a short ridge, a narrow bench, or a rock outcrop can fall entirely between two contour lines and never show up clearly on the contour map alone.
Spot elevations close that gap. These are individual measured points placed exactly where the terrain changes in a way contours might not catch. On a hillside site, a surveyor will usually add spot shots at benches, low points, and any sharp grade change.
For early wall planning, these small features can matter more than they look. A bench that contours miss might be the exact spot where a wall step or terrace makes more sense than a single tall wall.
Capturing Nearby Features That Limit Wall Placement
Grade alone doesn’t decide where a retaining wall can go. What already sits on the ground plays a large role too.
A topographic survey documents surface features near the proposed wall corridor. That includes building foundations, pavement edges, fences, visible utility structures like meters and vaults, drainage inlets, and other surface improvements already on site.
Each of these can limit where a wall can physically sit, or how close it can come to an existing structure. A fence line eight feet from a slope edge changes the usable construction area. A drainage swale crossing the corridor changes how water needs to be handled once excavation begins.
Surface-visible utility markings belong on this map as well. Full utility locating is its own separate process, but anything visible at the surface still needs to be recorded before wall placement gets finalized.
Using Existing-Grade Data Before Excavation Quantities Are Estimated
Before anyone can work out how much material a retaining wall project will move, they need to know where the ground starts.
Existing-grade topographic data gives engineers and contractors that starting point. It shows current elevations across the site, which becomes the baseline for any cut and fill numbers tied to the wall corridor.
This data has a clear limit, though. A topographic survey shows terrain. It doesn’t tell anyone whether the soil behind a proposed wall is stable, what the water table looks like, or how the wall itself should be engineered to hold back the slope. Those answers come from geotechnical testing and structural wall design done by a qualified engineer.
Topographic data sets the stage for that work. It doesn’t replace it.
Frequently Asked Questions
Can topographic data determine how tall a retaining wall should be?
It provides existing elevations and terrain information that designers can use, but final wall dimensions depend on the completed engineering design and site conditions.
Does topographic data show what is underground behind a proposed retaining wall?
Not necessarily. Standard topographic mapping mainly documents surface conditions unless underground utility or subsurface work is specifically added to the scope.
Why collect elevations beyond the exact retaining-wall location?
The surrounding terrain helps designers see how the ground approaches and leaves the wall area, rather than looking at one narrow line by itself.
Can a topographic survey tell whether hillside soil is stable enough for a retaining wall?
No. A topographic survey documents terrain and elevations. Soil stability and subsurface conditions call for proper geotechnical testing.
Should topographic data be collected before or after a retaining-wall concept is drawn?
Collecting reliable existing-ground data early gives the design team a factual terrain baseline before dimensions and grading decisions get finalized.
