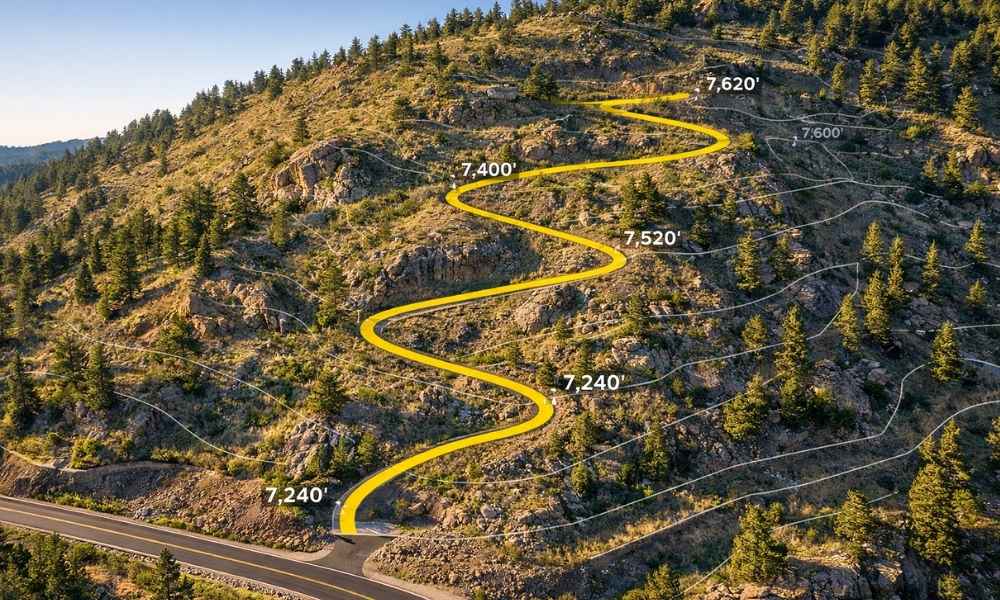

Mountain and foothill lots look great on paper. Then you try to design a driveway on a 15% grade, and the project turns into an engineering problem fast. Grades that steep, plus spring runoff and wildfire access rules, mean the driveway needs its own design work. It is not just an afterthought tacked onto the building pad plan.
A topographic survey is where that design work starts. But not every topo survey gives builders what they need for a steep driveway. Here is what to ask for, and why it matters.
Why a Standard Contour Interval Won’t Cut It on a Steep Driveway Design
Most residential topo surveys use a 2-foot contour interval. That works fine for a flat building pad. It does not work for a driveway climbing a hillside.
On steep ground, a 2-foot interval hides small grade changes that matter. A short, hidden dip or rise can throw off drainage or make a stretch of driveway too steep for a vehicle to handle safely.
For a foothill driveway, ask your surveyor for a 1-foot contour interval or tighter. Also ask for spot elevations along the exact centerline where the driveway will run. Contours alone show the general shape of the land. Spot elevations along the driveway path show the actual grade the design will follow, foot by foot.
Reading Grade Percentage Off the Map: What Foothill Access Roads Actually Require
Grade percentage tells you how steep a driveway is. It is the rise in elevation divided by the horizontal distance, times 100. A topo survey with tight contour spacing lets an engineer calculate this accurately along the whole driveway path, not just at a few points.
Many mountain counties cap driveway grades, often tied to fire-access rules for emergency vehicles. Sustained grades much above 12% start raising red flags in many jurisdictions, and grades near 20% often require a switchback or a different route entirely.
The contour data shows where a straight run works and where the land simply will not allow it. A switchback is not a design choice at that point. It is what the ground dictates.
Cut-and-Fill Math Hidden in the Contours: Avoiding a Mid-Build Budget Blowout
Every foot a driveway cuts into a hillside, or fills to level a bad slope, costs money. Topo data lets an engineer calculate that earthwork volume before anyone breaks ground.
This step matters more on steep lots than flat ones. Flat lots rarely surprise a builder with a mid-project cost spike. Steep lots do it often. A driveway plan that looked simple on a rough sketch can turn into a much bigger cut than expected, and that cut can hit rock or unstable soil that was invisible until the machines started digging.
Ordering accurate topo data before design locks in the cut-and-fill numbers early. That gives a builder a real budget instead of a guess.
Where the Water Goes: Using Topo Data to Place Culverts and Cross-Drains Before You Grade
Water always follows the lowest path. On a hillside, that path already exists, whether anyone has mapped it or not. A topo survey shows those natural drainage lines and swales before a driveway gets built across them.
A driveway cut into a slope interrupts that natural flow. Without a culvert or cross-drain placed in the right spot, water backs up during spring runoff and finds a new path, often straight down the middle of the driveway.
Placing drainage structures based on topo data means the design accounts for water before construction starts. Retrofitting a culvert after a washout costs far more than planning it in from the beginning.
The Driveway-to-Road Tie-In: Why Sight Distance and Approach Grade Belong on Your Survey Request
The point where a steep driveway meets the county or forest-access road is its own design problem. A vehicle pulling out needs enough sight distance to see approaching traffic. The approach grade, how steeply the driveway meets the road, has its own limits too.
Many builders order a topo survey that covers the lot but stops short of the road tie-in. That leaves a gap right where permitting officials look closest. Ask the surveyor to extend the topo detail far enough along the road frontage to capture sight lines in both directions and the actual approach grade.
Getting this data before submitting a site plan avoids a redesign request partway through permitting.
FAQ
How steep can a driveway be on a mountain or foothill lot before it needs a switchback?
It depends on the sustained grade, not just short, steep pitches. Contour spacing on a topo survey shows this clearly before design even begins.
What contour interval should I request for a steep-lot driveway design, not just a home site plan?
Most engineers want a tighter interval along the driveway path than the interval used for the building pad. Say this clearly when you order the survey.
Can a topographic survey tell me if I’ll need a retaining wall for my driveway?
The contour and spot-elevation data won’t design the wall for you. But it will show exactly where cut slopes get too steep to stay stable, which is where that conversation starts.
Does topo data account for spring runoff or snowmelt drainage patterns on foothill lots?
The survey captures the existing shape of the ground that drainage follows. That shape is the baseline an engineer uses to route water around the driveway. It does not capture seasonal flow by itself.
How far in advance of permitting should a steep-lot topo survey be ordered?
Early enough that cut-and-fill and drainage design happen before the driveway layout gets locked into the site plan submitted to the county.
